Split Electromagnetic Flowmeter
Smart electromagnetic flow meter LD series is oriented for conductive liquid with conductance higher than 5 us/cm, it can be used to measure the volume flow of conductive fluid in a closed pipeline.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Output Signal | 4-20MA | Connection | Flange |
Model NO. | LD Series | Max Temp. | 120℃ | Application | Waste water, agriculture, food and so on |
Medium | Water,Air | Customized Support | OEM, ODM, OBM | Protection Grade | IP68 |
Accuracy | ±0.5% | Brand Name | ZYIA | Sample | Available |
Introduce
Smart electromagnetic flow meter LD series is oriented for conductive liquid with conductance higher than 5 us/cm, it can be used to measure the volume flow of conductive fluid in a closed pipeline. It is composed of sensor and converter and two versions are available: Compact version and separate version. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.
Features
■ Various liner can be selected hat satisfies most industrial applications
■ Flow velocity range: 0 -12m /s, with good results for low f low applications
■ It comes any flanges such as, ANSI DIN JIS Etc
■ It excellent for high pressure application
■ Protection class: IP68 is available, and the sensor can sink into the water
■ PFA Liner suitable in vacuum tube
■ High accuracy of + /-0.5% of reading
■ With Forward Reverse flow rate measure function
Product Specification
Size | 10mm-2000mm |
Measuring Range | Velocity 0.3-15m/s min |
Explosion Proof | Ex d II C T6 Gb |
Electrode&Grounding | Stainless Steel 316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum |
Measuring Tube | Stainless Steel 304,Stainless Steel 316(Option) |
Flange | Carbon Steel(standard),Stainless Steel 304(Option),Stainless Steel 316(Option) |
Coil Housing | Carbon Steel(standard),Stainless Steel 304(Option),Stainless Steel 316(Option) |
Liner | Neoprene(25-2000mm),Polyurethane(15-600mm),FEP(10-300mm) |
Protection | IP 68 (Submersible) |
Conductivity | to be more than 5us/cm |
Working Pressure | 1.6Mpa (Size 10-150mm),1.0Mpa (Size 200-900mm),0.6Mpa (Size 1000-2000mm) |
Cable Entry | 2 X PG 11, 1/2 NPT (Option) |
Ambient Temperature | -25 to 60 Deg. C |
Process Connection | Flange |
Flanges Type | JIS 10K /JIS 20K/ JIS 40K ANSI 150# /ANSI 300#/ANSI 600# DIN PN 10 /PN 16/ PN 25/ PN40 |
Grounding Resistance | Must be less than 10Ω |
Temperature | -20~+80℃(Neoprene),-20~+60℃(PU),-25~+120℃(FEP),-30~+120℃(PTFE),-30~+120℃(PFA) |

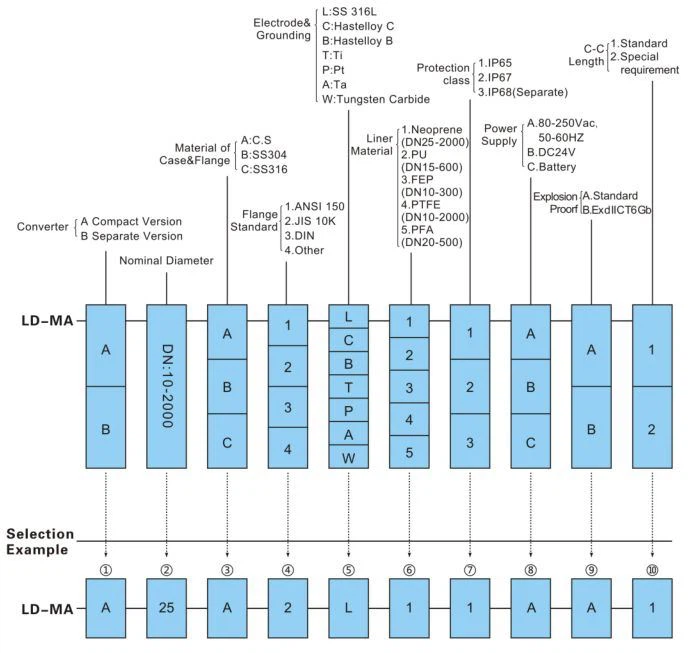

LD -MA Model Selection

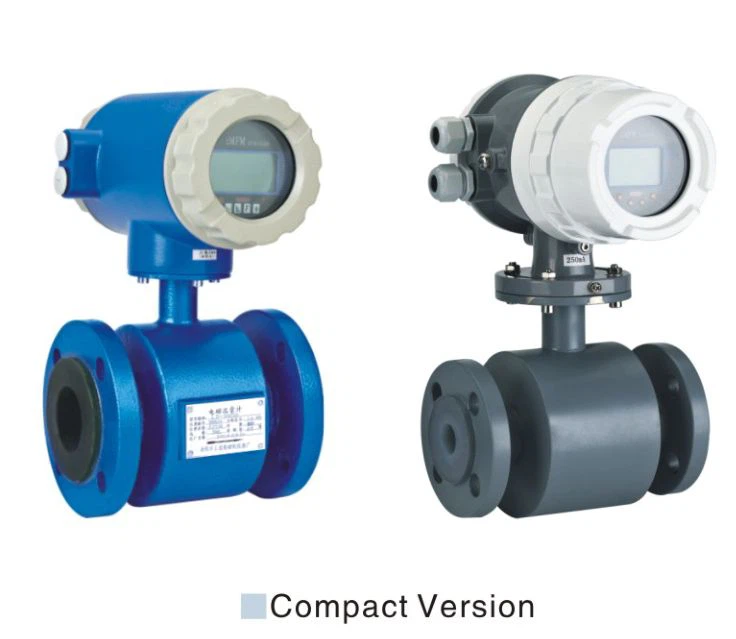

Compact Version: Grey (Standard)
Blue(Option)
