Flow Meter with Different Connection
This is a highly accurate glass rotameter with diversified joints and various options of scalings from to percentage.

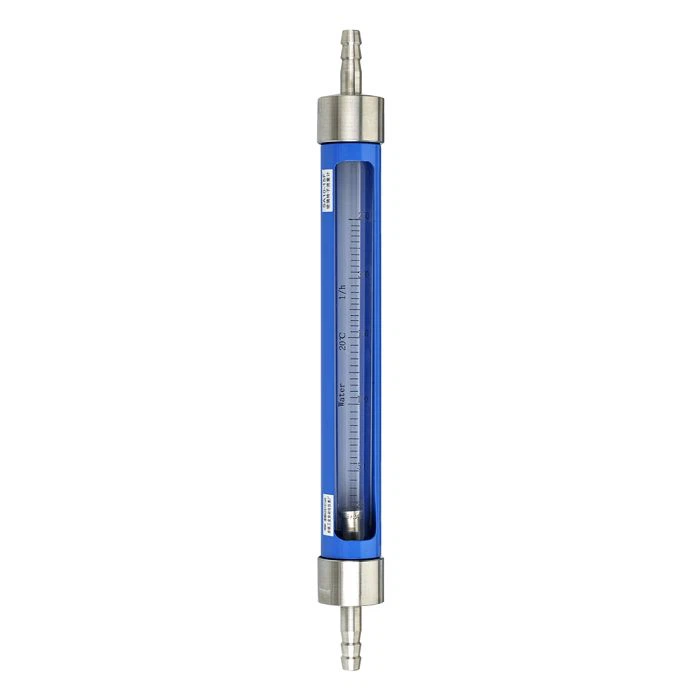

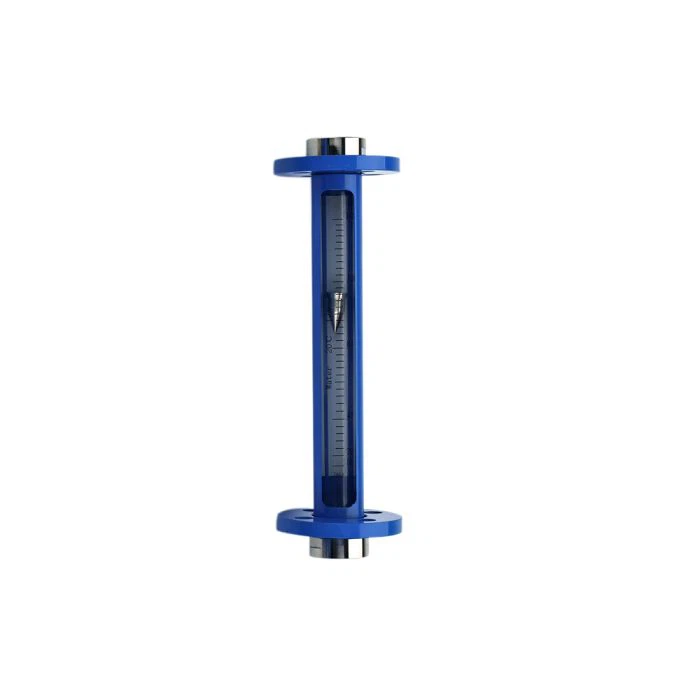

VA10 is threaded connection, SA 10 is hose connection, FA10 is movable flange connection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Working Pressure | ≤1.0 Mpa | Connection | Screw threa or flange or hose |
Model NO. | LZB - VA/SA/FA10 | Max Temp. | 120℃ | Application | Water treatment or air treatment |
Medium | Water, Liquid, Air, Gas | Customized Support | OEM, ODM, OBM | Float | SS304 |
Accuracy | ±1.5% | Brand Name | ZYIA | Sample | Available |
Introduce
This is a highly accurate glass rotameter with diversified joints and various options of scalings from to percentage.
VA10 is threaded connection, SA 10 is hose connection, FA10 is movable flange connection.
Product Features
1) High quality, Hot-sell, Factory price
2) The installation is easy and higher measure accuracy, diversified connections
Main Technical Parameters
Model | Diameter | Range(L/h) | Accuracy | Temperature | Working Pressure | |
Water 20℃ | Air 101325Pa 20℃(m3/h) | |||||
VA10-15 SA10-15 | 15 | 4-40 6.3-63 | 0.12-1.2 0.2-2 | 1.5 | -20℃-+60℃ or | ≤1.0MPa |
VA10-25 SA10-25 | 25 | 40-400 50-500 | 1.6-16 2-20 | |||
VA10-40 SA10-40 | 40 | 160-1600 | 5-50 6-60 | ≤0.9MPa | ||
VA10-50 FA10-50 | 50 | 250-2500 | 10-100 12-120 | ≤0.7MPa | ||
Note: Model with "F":corrosion resistant model,e.g VA10-15F
VA10 Outline Dimensions
Diameter | Display window | VA10 Threaded Connection | ||
L1 | C | Thread | ||
15 | 26*230 | 408 | 53 | 1/2" BSP |
25 | 414 | 75 | 1" BSP | |
40 | 40*230 | 428 | 92 | 1 1/2" BSP |
50 | 50*230 | 431 | 116 | 2" BSP |
SA10 Outline Dimensions
Diameter | Display window | SA10 Threaded Connection | ||
L1 | C | D | ||
15 | 26*230 | 400 | Φ13.5 | Φ44 |
25 | 450 | Φ27 | Φ65 | |
40 | 40*230 | Φ44 | Φ80 | |
50 | 50*230 | Φ53 | Φ103 | |
FA10 Outline Dimensions
Diameter | Display window | FA10 Threaded Connection | |||
L3 | C | D | E | ||
15 | 26*230 | 320 | Φ65 | Φ95 | 4-φ14 |
25 | Φ85 | Φ115 | |||
40 | 40*230 | Φ110 | Φ145 | 4-φ18 | |
50 | 50*230 | Φ125 | Φ165 | ||
Material of 10 Series
No. | Material | No. | Material |
1 | SS304 SS316 | 5 | SS304,45# |
2 | 45# | 6 | SS304 ,AL |
3 | AL or SS304 | 7 | SS304,45# |
4 | 45# or SS304 | 8 | AL,SS304 |
