Gas Flow Meter with Alarm

Gas Flow Meter with Alarm

Switch on/ off is actually magnetic float contact open/ close after magnetron bistable exciting.Alarm sound and light are based on the switch position of on/ off linked to relays among other parts and elements.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤1.0 Mpa

Connection

Screw thread, flange, hose

Model NO.

LZB - GA24

Max Temp.

120℃

Application

Water treatment or air treatment

Medium

Water, Liquid
Air, Gas

Customized Support

OEM, ODM, OBM

Float

SS304

Accuracy

±1.5%

Brand Name

ZYIA

Sample

Available


Introduce

1) Philosophy

2) Switch on/ off is actually magnetic float contact open/ close after magnetron bistable exciting.Alarm sound and light are based on the switch position of on/ off linked to relays among other parts and elements.

3) Functions and Applications

4) BJ01: High Alarm Limit Switch (HA) BJ02:Low Alarm Limit Switch(LA), Both the switches of BJ02 are to send relevant signals at maximum, middle and minimum flow. The switches are mounted on certain selected position of rail and whenever magnetic float reaches or passes the switch level, signals will be sent out for internal contact actuation of either opening or closing.

5) Technical Parameter

6) Rated Voltage: max DC24/AC24 Rated Amperage: max 0.3A Steady Current at Switches Opening or Closing: max DC 0.1A Interruption Capacity: ≤10W Insulation Impedance: > 10^9 Ω Working Temperature: 0℃-+55℃ Protection Grading: IP65 Displacement(position on or off): ≤4mm

7) Precautions

8) Keep off from ambient magnetic disturbance during mounting e.g. large motors etc;

9) Flow media should be free from ferromagnetic foreign matters;

10) Ensure pipes or tubes to be mounted with the flowmeters free from any potential vibration in case switch contact actuates accidentally.

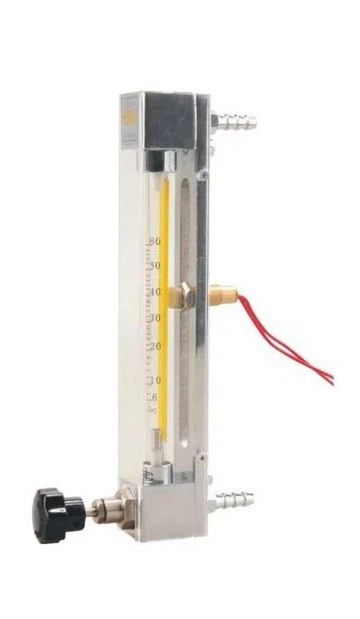

202202181004562156a0455093418ebfa26e970b0811381QQ20221018130228
LZB-10LZB-15 ,LZB-25



Data sheet of LZB Series Flowmeter with Alarm Limit Switches

Model

LZB-10

LZB-15

LZB-25

Diameter(mm)

Φ10

Φ15

Φ25

Range


l/h
(Liquid)

6-60

*6-60

40-400

10-100

*8-80

60-600

16-160

16-160

100-1000


25-250

*160-1600


40-400


Nm3/h

(Gas)

0.1-1

0.25-2.5

*0.8-8


0.4-4

1-10


0.6-6

1.6-16


*0.8-8

2.5-25


*1-10

*3-30



*4-40

Accuracy± %

2.5

2.5

1.5

Working Pressure(MPa)

≤1

≤0.6

≤0.6
