Acrylic Panel Mount Gas Air Liquid Flowmeter
AFM--6T series flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. There are front mounted metering valves.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Float | SS316 Agate ball | Thread | 1/4” BSP 1/4’ BSPT |
Model NO. | AFM-6T | Fitting | female | Tube | durable acrylic |
Medium | gas, air, water, chemical medium | Customized support | OEM, ODM, OBM | Diameter | DN6MM |
Accuracy | ±4% | Brand Name | ZYIA | Valve | Brass |
Working Pressure | ≤ 1 Mpa | Type | Variable Area Air & Gas Flowmeters, Variable Area Water | O-ring | Silicon rubber |
Introduce
AFM--6T series flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. There are front mounted metering valves. This scale compact flowmeter ideal for measuring small volume air and easy to read. It features bezel type mounting that can be quickly installed from the front of the instrument panel. It can be connected with hose or metal pipe.
Product Features:
1) Low installation costs with easy mounting .
2)Long operation life with durable construction.
3)Precision molding enables high repeatability.

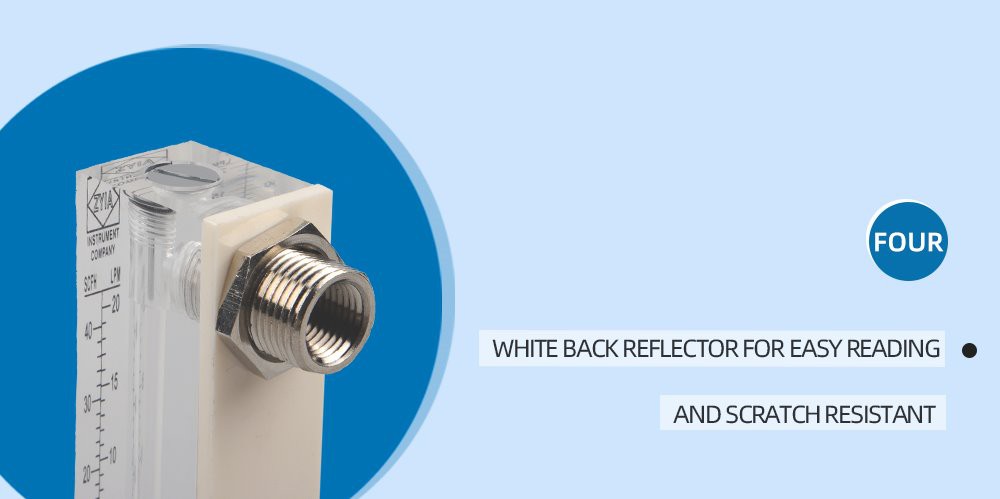

4)White back on the flow tube allows for better visibility of the float increasing reading accuracy .
5)Side printed scale graduations allows for instantaneous flow reading saving time.
6)Compact bodies require minimal panel space freeing valuable space.
 |  |
| AFM-6T | DRAWING |
The outline size of AFM-6T Series Flow Meter
| Model | Size(mm) | |||||
A | B | C | D | E | F | |
| AFM-6T | 102 | 33 | 25 | 47 | 105.5 | 77 |
Technical Parameter of AFM-6T Series Flow Meter
Model | Range | Screw Thread | Accuracy | |
Liquid (ML/Min) | Gas(L/Min) | |||
AFM-6T | 6-60 10-70GPH 16-160 25-250 80-400 100-500 100-600 200-800 100-1000 2-20l/h 4-40l/h 6-60l/h 10-100l/h 10-70GPH 0.1-1GPM | 0.1-0.8 0.1-1.5 0.1-1 0.2-2 0.3-3 0.4-4 0.5-5 0.5-8 1-5 1-10 1-12 1.5-15 2-10 2-20 3-15 3-30 4-20 4-40 5-25 6-30 10-60 10-70 10-100 0.05-0.25m3/h 0.04-0.4m3/h 1-10SCFH/0.5-5LPM 2-20SCFH/0.5-5LPM 4-40SCFH/2-20LPM 8-80SCFH/4-40LPM 10-100SCFH/5-50LPM 20-200SCFH/10-100LPM |
(F) 1/4” BSP (F)1/4” BSPT | ± 4% |
