Glass Tube Liquid Flowmeter
This Series of flowmeter is made of SS304. There are female Screw thread. Flange Connection and Tri-clamp connection for choice. It is featured in nice looking and low weight.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Working Pressure | ≤1.0 Mpa | Connection | Flange or Female thread |
Model NO. | LZB - VA/FA/WA | Max Temp. | 120℃ | Diameter | DN15-DN50mm |
Medium | Water, Liquid, Air, Gas | Customized Support | OEM, ODM, OBM | Application | Water treatment or food industry |
Accuracy | ±1.5% | Brand Name | ZYIA | Sample | Available |
Introduce
This Series of flowmeter is made of SS304. There are female Screw thread. Flange Connection and Tri-clamp connection for choice. It is featured in nice looking and low weight.
Product Features
1) Used for Water treatment or food industry and so on.
2) 2) Light and handy structure, good looks, easy installation and maintenance.
3) All flow meters can be equipped with limit switches.
Main Technical Parameters
Model | Diameter | Range(L/h) | Accuracy | Temperature | Working Pressure | |
Water 20℃ | Air 101325Pa 20℃(m3/h) | |||||
VA30S-15 | 15 | 4-40 6.3-63 | 0.12-1.2 0.2-2 | 1.5 | -20℃-+120℃ | ≤1.0MPa |
VA30S-25 | 25 | 40-400 50-500 | 1.6-16 2-20 | |||
VA30S-40 FA30S-40 | 40 | 160-1600 | 5-50 6-60 | ≤0.9MPa | ||
VA30S-50 FA30S-50 | 50 | 250-2500 | 10-100 12-120 | ≤0.7MPa | ||

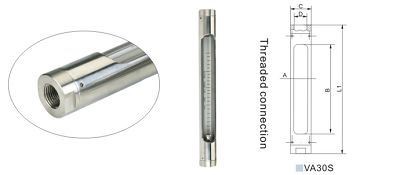

LZB -VA 30S Glass Tube Rotameter Outline Dimensions(mm)
Diameter | Display window | VA30S Threaded Connection | ||
L1 | C | D | ||
15 | 26*236 | 344 | φ38 | 1/2" BSP |
25 | 34*226 | 348 | φ55 | 1" BSP |
40 | 44*226 | 370 | φ70 | 1 1/2" BSP |
50 | 60*216 | 380 | φ90 | 2" BSP |

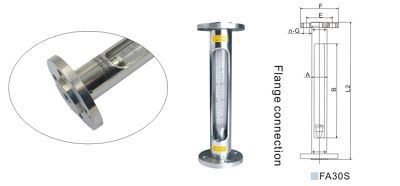

LZB -FA 30S Glass Tube Rotameter Outline Dimensions(mm)
Diameter | Display window | FA30S Threaded Connection | |||
L1 | E | F | n-G | ||
15 | 26*236 | 348 | Φ65 | Φ95 | 4-Φ14 |
25 | 34*226 | 348 | Φ85 | Φ115 | 4-Φ14 |
40 | 44*226 | 370 | Φ110 | Φ145 | 4-Φ18 |
50 | 60*216 | 370 | Φ125 | Φ160 | 4-Φ18 |
LZB -WA 30S Glass Tube Rotameter Outline Dimensions(mm)
Diameter | Display window | WA30S Threaded Connection | ||
L3 | J | K | ||
15 | 26*236 | 376 | 50.5 | 3/4" |
25 | 34*226 | 376 | 50.5 | 1" |
40 | 44*226 | 376 | 50.5 | 1 1/2" |
50 | 60*216 | 376 | 64 | 2" |
