Cylindrical Type Flow Meter
LZM--Z series flowmeter is suitable for both gas and liquid, it featured in beautiful look. With semicircle fittings and white colored type, and there are two screws can easily installed on panel.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Float | SS316 | Connection | Male Thread |
Model NO. | LZM-Z Series | Fitting | 1/4'' male 1/2'' male | Body | Acrylic |
Medium | Gas, Air, Water | Customized Support | OEM, ODM, OBM | Diameter | DN15mm, 25mm |
Accuracy | ±4% | Brand Name | ZYIA | Fitting | ABS |
Working Pressure | ≤ 1 Mpa | Max Temp. | 60℃ | O-ring | Silicon rubber |
Introduce
LZM--Z series flowmeter is suitable for both gas and liquid, it featured in beautiful look. With semicircle fittings and white colored type, and there are two screws can easily installed on panel.
Product Features
1) White back on the flow tube allows for better visibility of the float increasing reading accuracy.
2) Long operation life with durable construction.
3) OEM logo print, customize size and ranges
4) Calibrated for any kinds of gas
Technical Parameter of LZM - Z Series Flow Meter
Model | Range | Screw Thread | Accuracy | ||
GPM | LPM | Nm/h | |||
LZM-15ZA | 15-150LPH | 0.1-1 0.16-1.6 0.3-3 0.4-4 | (M)1/4" BSPT | ±4% | |
LZM-15Z | 10-100LPH | 0.04-0.4 | (M)1/2" BSPT (F)1/4" BSPT | ||
0.03-0.35 | 0.1-1.4 | ||||
0.05-0.5 | 0.2-1.8 | ||||
0.1-1 | 0.5-4 | ||||
0.15-1.5 | 0.6-6 | ||||
0.2-2 | 1-7 | ||||
0.3-3 | 1-11 | ||||
0.5-5 | 2-18 | ||||
LZM-25Z | 1-10 | 5-35 | 2.5-15 2.5-25 | (M)1" BSPT | |
1-15 | 5-50 | ||||
2-14 | 10-50 | ||||
2-20 | 10-70 | ||||
5-35 | 10-130 | ||||
5-40 | 10-150 | ||||
5-45 | 10-170 | ||||
0.3-2.1m3/h | |||||

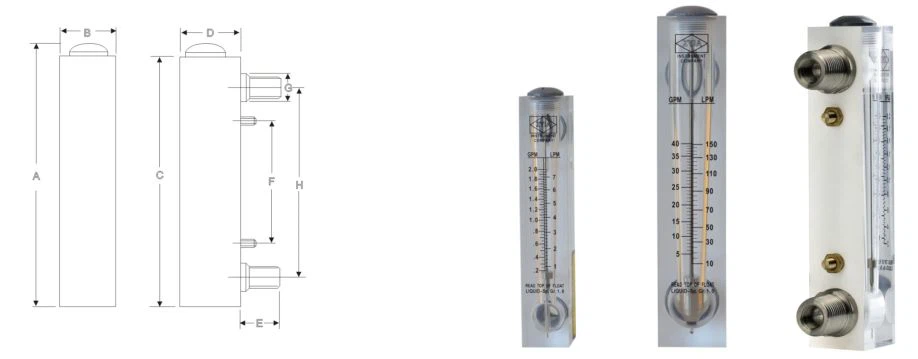

The outline size of LZM - Z Series Flow Meter
Model | Size(mm) | |||||||
A | B | C | D | E | F | G | H | |
LZM-15ZA | 157 | 32 | 150 | 35 | 25 | 60 | 25 | 110 |
LZM-15Z | 175 | 32 | 168 | 35 | 25 | 76 | 25 | 127 |
LZM-25Z | 234 | 45 | 226 | 46 | 33 | 100 | 37 | 160 |
Why choose us?
- Our customer service team is always available to help you with any questions or concerns you may have.
- Our advantages come from professionalism and enthusiasm, and 'profit for customers' is our goal.
- As a manufacturer and supplier, we offer competitive pricing on all our products.
- We know that every product, every user is the one on whom our livelihood depends and if the quality of the product can not be guaranteed, we will get the sack.
- We offer a wide range of Acrylic Flow Meters to suit any need or budget.
- Our company attracts and recruits a large number of professionals, constantly improves the quality of products and services, and vigorously develops new Cylindrical Type Flow Meter to achieve large-scale operations.
- Our team is passionate about providing our customers with excellent quality and service.
- We can customize products that meet customers' requirements.
- We use the latest techniques and technologies to manufacture our Acrylic Flow Meters.
- The company regards quality as life, and attaches great importance to scientific and technological innovation and technological progress.
