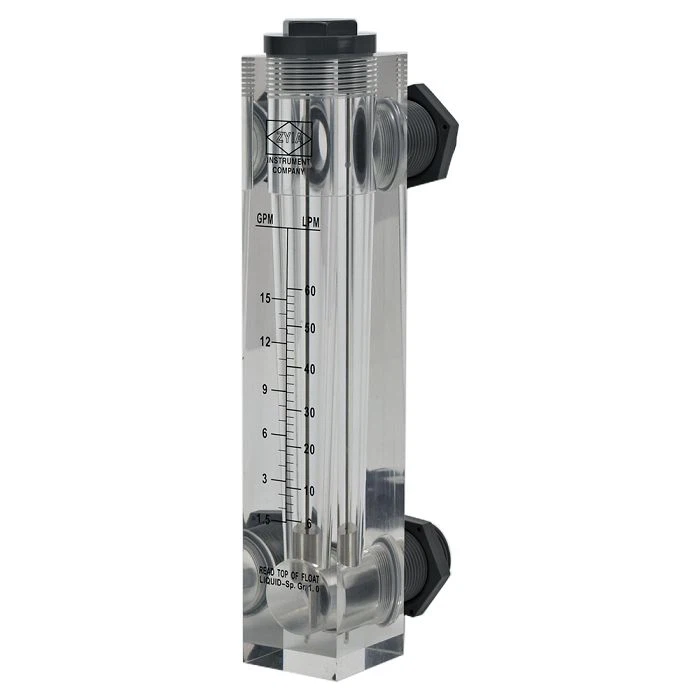

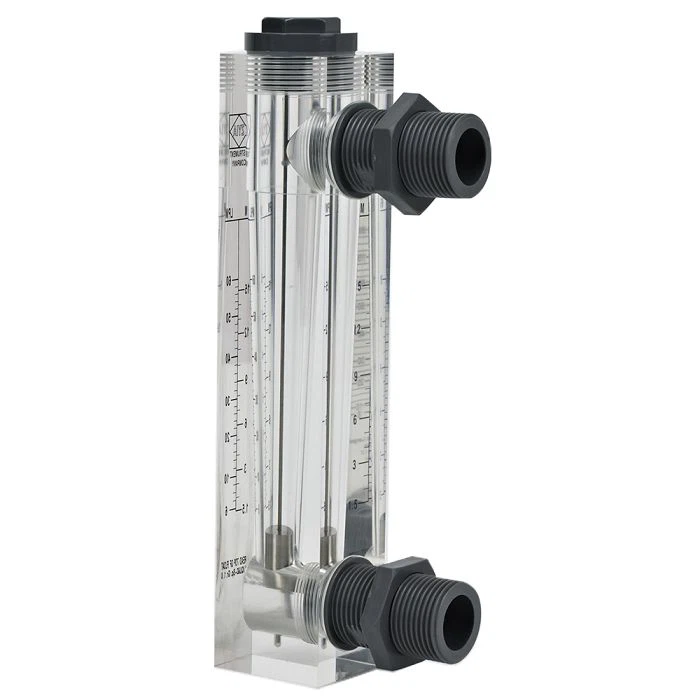

Gas Flow Meter
LZM--J series flowmeter has lengthen, which is installed on the panel, the customer will fix it by hexagonal nut the fitting.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Float | SS316 | Connection | Male Thread |
Model NO. | LZM-J Series | Fitting | 3/4'' male NPT/BSP 1/2'' male NPT/BSP | Body | Acrylic |
Medium | Gas, Air, Water | Customized Support | OEM, ODM, OBM | Diameter | DN15mm, 20mm, 25mm |
Accuracy | ±4% | Brand Name | ZYIA | Fitting | ABS |
Working Pressure | ≤ 1 Mpa | Max Temp. | 60℃ | O-ring | Silicon rubber |
Introduce
LZM--J series flowmeter has lengthen, which is installed on the panel, the customer will fix it by hexagonal nut the fitting.
The measure range of LZM Series is the same.
Product Features
1) Clear scale, transparent display, clear value.
2) High accuracy adjustable button. Wear resistant, high quality stainless steel valve body, easy to use, convenient.
3) Threading connection.
4) Easy installation, easy operation (customized materials available).
Technical Parameter of LZM - J Series Flow Meter
Model | Range | Screw | Accuracy | ||
GPM(Liquid) | LPM(Liquid) | Nm3/h(Gas) | |||
LZM-15J | 0.1-1 | 0.5-4 | 1-10 1.6-16 | (M)1/2"NPT | ±4% |
0.2-2 | 0.8-8 | ||||
0.3-3 | 1-11 | ||||
0.5-5 | 2-18 | ||||
1-7 | 2-28 | ||||
1.5-9 | 400-2000LPH | ||||
LZM-20J | 2-10 | 8-40 | 2.5-25 6-60 16-80 16-160 | (M)3/4"NPT | |
2-16 | 8-60 | ||||
2-20 | 8-80 | ||||
LZM-25J | 1.5-15 | 6-60 | 20-200 | (M)1"NPT | |
3-13 | 10-50 | ||||
4-24 | 10-100 | ||||
5-35 | 10-130 | ||||
5-45 | 20-170 | ||||
The outline size of LZM - J Series Flow Meter
Model | Size(mm) | |||||||
A | B | C | D | E | G | H | I | |
LZM-15J | 216 | 32 | 206 | 37 | 33 | 1/2" | 165 | 30 |
LZM-20J | 233 | 39 | 220 | 44 | 49 | 3/4" | 165 | 32 |
LZM-25J | 253 | 44 | 240 | 50 | 48 | 1" | 175 | 40 |
