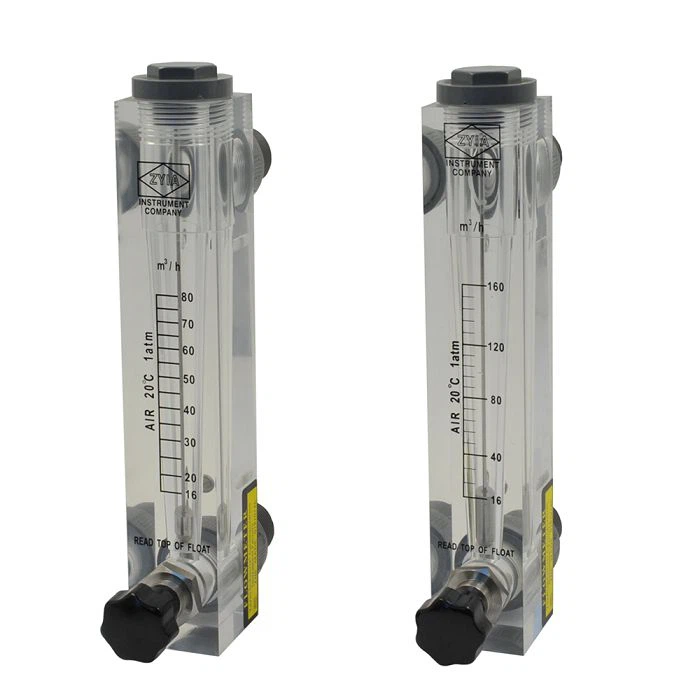

Flowmeter with Regulator
LZM - T Series is fitting for measuring and adjusting small flow rate, it has compact configuration. A specially designed fitting permit easy to read.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quick Details
Place of Origin | Zhejiang China | Float | SS316 | Connection | Male Thread |
Model NO. | LZM -T Series | Fitting | 1/4'' female 3/4'' male | Body | Acrylic |
Medium | Gas, Air, Water | Customized Support | OEM, ODM, OBM | Diameter | DN15mm, 20mm, 25mm |
Accuracy | ±4% | Brand Name | ZYIA | Fitting | ABS |
Working Pressure | ≤ 1 Mpa | Max Temp. | 60℃ | O-ring | Silicon rubber |
Introduce
LZM - T Series is fitting for measuring and adjusting small flow rate, it has compact configuration. A specially designed fitting permit easy to read.
Product Features
1) Optional flow control needle-type adjustment valve.
2) Durable and long service, adopt high quality material
3) High definition scale, convenient and accurate reading
Technical Parameter of LZM - T Series Flow Meter
Model | Range | Screw | Accuracy | ||
GPM(Liquid) | LPM(Liquid) | Nm3/h(Gas) | |||
LZM-15T | 0.1-1 | 0.5-4 | 1-10 1.6-16 | (M）1/2" BSPT | ±4% |
0.2-2 | 0.8-8 | ||||
0.3-3 | 1-11 | ||||
0.5-5 | 2-18 | ||||
LZM-20T | 2-10 | 8-40 | 2.5-25 4-40 | (M）3/4" BSPT | |
2-16 | 8-60 | ||||
2-20 | 8-80 | ||||
LZM-25T | 3-13 | 10-50 | 20-100 | (M）1" BSPT | |
6-24 | 20-100 | ||||
10-35 | 30-130 | ||||
10-45 | 30-170 | ||||
The outline size of LZM -T Series Flow Meter
Model | Size(mm) | |||||||
A | B | C | D | E | F | G | H | |
LZM-15T | 216 | 32 | 206 | 37 | 36 | 100 | 28 | 165 |
LZM-20T | 566 | 39 | 220 | 44 | 42 | 100 | 37 | 165 |
LZM-25T | 253 | 44 | 240 | 50 | 31 | 100 | 37 | 175 |
