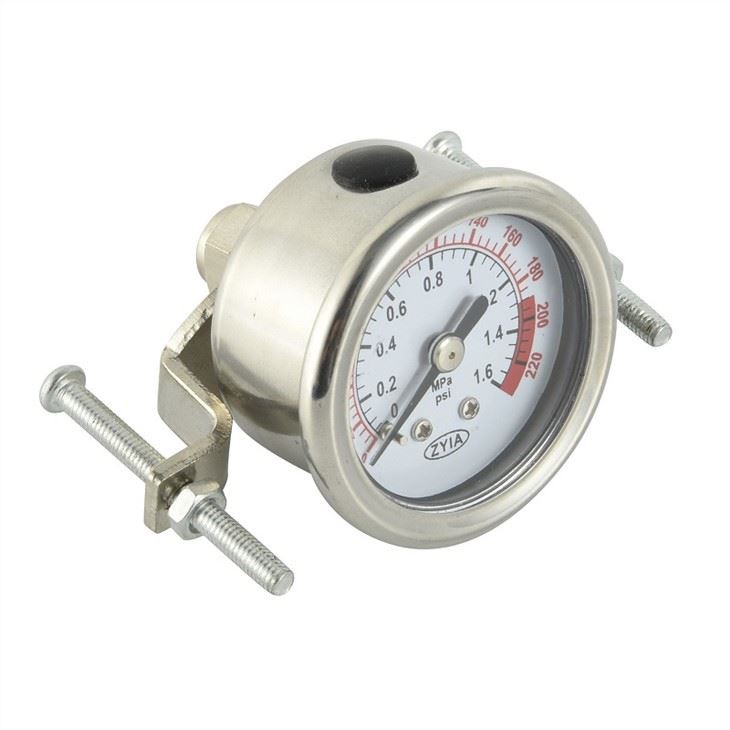

Pressure Gauge For Water

Pressure Gauge For Water

YTN -Series liquid filed pressure gauge fill damping fluid (silicone oil, glycerol) in the gauge and other measures to ensure that it has excellent function of impact resistance and aseismatic.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Quick Details

Place of Origin

Zhejiang China

Range

0.1-60Mpa

Case Material

SS304

Model NO.

YTN -Series

Brand Name

ZYIA

Connection Thread

BSP, BSPT, NPT

Accuracy

±2.5

Customized Support

OEM, ODM, OBM

Screw Thread

Brass chromeplate

Fitting Material

Brass

Module

Brass

Spring Pipe

Phosphor Copper


Introduce

YTN -Series liquid filed pressure gauge fill damping fluid (silicone oil, glycerol) in the gauge and other measures to ensure that it has excellent function of impact resistance and aseismatic. So it is safe and reliable, with stable performance and long useful-life. It's apply to mechanical. Chemical, metallurgy, mine, Electrical, Measure the pressure of medium is non corrosive for copper and alday. If measure the pressure of high corrosive medium, all material of pressure gauge must be stainless stell.



Standard Specification

Diameter

Model

Installation

Range
(Mpa)

Thread

Casing Material

Accuracy


1^ 1/2"

YTN-40

Bottom connection

0.1,0.16
0.25,0.4
0.6,1,1.6
2.5,4,6

G 1/8"
ZG1/8"
Z1/8"
M10*1

SS304

±2.5

YTN-40Z

Back connection

YTN-40ZT

Back Connection
with border

2"

YTN-50

Bottom Connection

0.1,0.16
0.25,0.4
0.6,1,1.6
2.5,4,6
10,16,25,
40

G 1/8"
G1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14*1.5

SS304

YTN-50Z

Back connection

YTN-50ZT


Back Connection
with border

2^ 1/2"

YTN-60

Bottom connection

0.1,0.16
0.25,0.4
0.6,1,1.6
2.5,4,6
10,16,25,
40,60

G 1/8"
G1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14*1.5

SS304

YTN-60Z

Back connection

YTN-60ZT

Back Connection
with border

3"

YTN-75

Bottom connection

0.1,0.16
0.25,0.4
0.6,1,1.6
2.5,4,6,10,
6,25,40,60

G 1/8"
G 1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14*1.5

SS304

YTN-75Z

Back connection

YTN-75ZT


Back Connection
with border

4"

YTN-100

Bottom Connection

0.1,0.16
0.25,0.4
0.6,1,1.6
2.5,4,6
10,16,25,
40,60

G 1/2"
ZG1/2"
G3/8"
ZG3/8"
Z1/2"
Z3/8"
M20*1.5

SS304

±1.6

YTN-100Z

Back connection

YTN-100ZT

Back Connection
with border

Measurement Conversion:1Mpa=10bar=10.2kg/cn3=145psi

Note:G=BSP ZG=BSPT Z=NPT


Installation Specification (mm)

Model

40

50

63

75

100

A

Φ42

Φ52

Φ61

Φ75

Φ198

B

26

29

31

31

37

C

3

3

3

3

3

D

Φ47

Φ58

Φ68

Φ82

Φ109

E

11

14

14

14

17

F

3-Φ3.5

3-Φ4

3-Φ5

3-Φ5

3-Φ4

G

Φ52

Φ64

Φ78

Φ91

Φ115

H

Φ62

Φ73

Φ88

Φ105

Φ130


Working Condition of Liquid Filled Pressure Gauge

1) Ambient Temp: -5℃-+55℃

2) Working pressure is 1/3 -3/4 Max: static pressure or 1/3 - 2/3 Max. dymam is liquid pressure;

3) Relative Humidity ≤ 80%;

4) Working Vibration Frequency ≤ 25HZ; media amplitude ≤ 1mm;

5) It is required to mount the device vertically. It's forbidden to turn the device casing with hands during mounting or demounting operation
